Switss® M.2 SSD enclosure in use, lifestyle shot

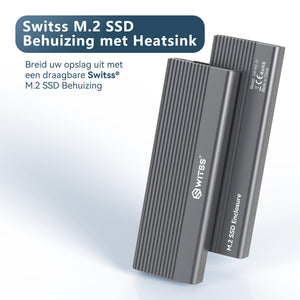

Switss® M.2 SSD enclosure

One enclosure.
NVMe and SATA.

  • USB-C, 10 Gbps
  • NVMe and SATA
  • No screws

Turn your own M.2 SSD into lightning-fast external storage, whichever type you have.

Note: SSD not included.

Based on 73 reviews

Order before 22:00, delivered tomorrow

Switss® M.2 SSD enclosure

USB-C 10 Gbps, NVMe & SATA, always cool.

€18,99incl. VAT€15,69excl. VAT

Empty enclosure: you fit your own M.2 SSD (NVMe or SATA). Which SSD fits?

Switss® M.2 SSD Enclosure

Based on 73 reviews

€18,99incl. VAT€15,69excl. VAT

In stock

SSD not included

3-year manufacturer warranty · 30-day cooling-off period · Dutch customer service

Check whether your SSD and computer fit

Up to 1050 MB/s read with an NVMe SSD on a 10 Gbps USB-C port; with a SATA SSD around 500 MB/s.

Is this right for you?

Fits if

  • Your SSD is M.2 NVMe (M-key) or M.2 SATA (B+M-key)
  • Its size is 2230 to 2280
  • Its capacity is up to 8 TB

Does not fit if

  • Your SSD only has a B-key
  • Your drive is mSATA or 2.5 inch
  • Your SSD is longer than 80 mm

What you need

  • Your own M.2 SSD: it is not included
  • The included USB-C cable with USB-A adapter
  • No tools: a silicone plug holds the SSD in place

Check in three questions

Which SSD do you have?
How long is your SSD?
Which port does your computer have?

Answer the questions above.

    Not sure? Send a photo of your SSD or your computer model to info@pelkonic.com. We usually respond within one business day.

    Turn a spare M.2 SSD into a fast external drive for your photos and files.

    Before you order: how it fits, how to set it up and whether it works with your laptop.

    • Will it fit? NVMe and SATA, 2230 to 2280, up to 8 TB
    • Easy to set up? Four steps, no screws or drivers
    • Your laptop? Windows, macOS and Linux, via USB-C or USB-A
    producer guarantee

    Warranty

    EU GARAN label: 3-year producer guarantee

    EU GARAN label: 3-year producer guarantee, Switss®, SW-M2-01 Tap or click the label to open it at full size

    Switss® gives a 3-year producer guarantee on the SW-M2-01. The GARAN label is the European label for a guarantee that lasts longer than the legal two years.

    30 daysfree returns
    NLcustomer service, reply within 1 business day

    In use

    Got an old SSD lying around?

    A fast external drive in one minute

    The M.2 enclosure on a wooden desk, connected to a laptop with the USB-C cable, in evening light
    10secfor 10 GB of photos
    1minto install, no screws
    71gramsfits in your coat pocket

    10 GB in about 10 seconds at 1000 MB/s write, NVMe SSD on a USB 3.2 Gen 2 port (10 Gbps)

    Compatibility

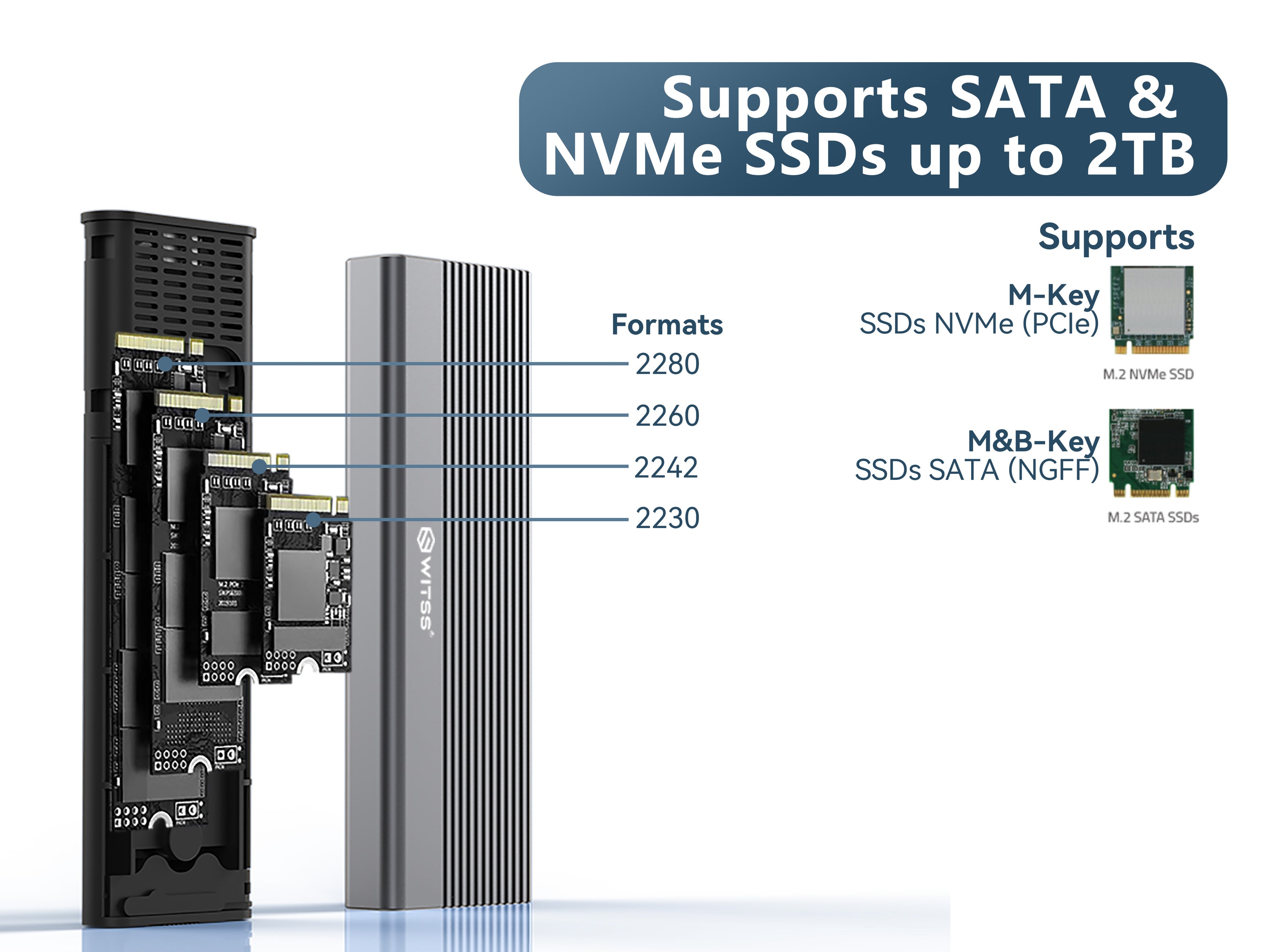

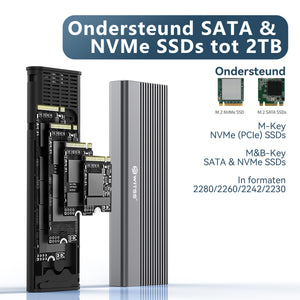

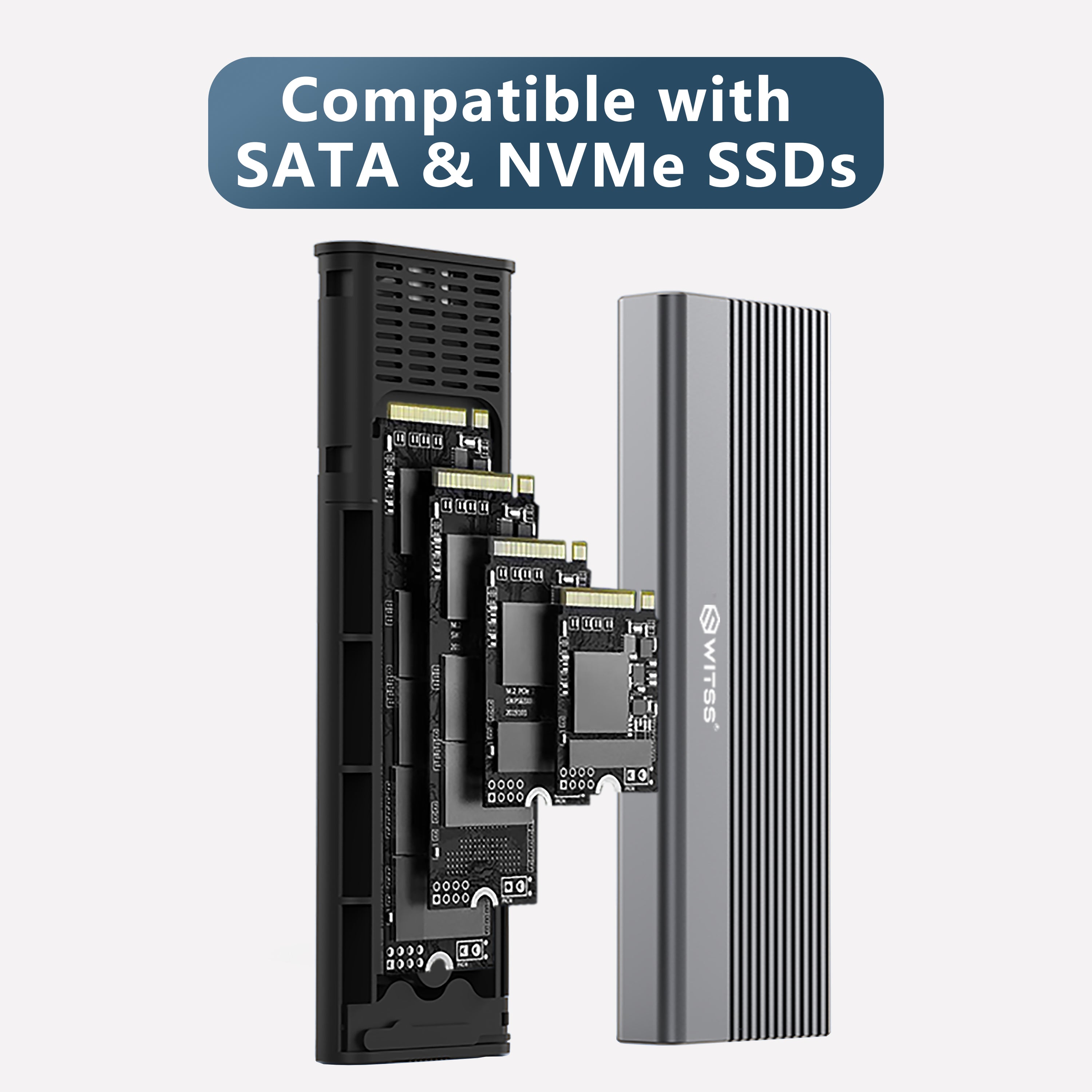

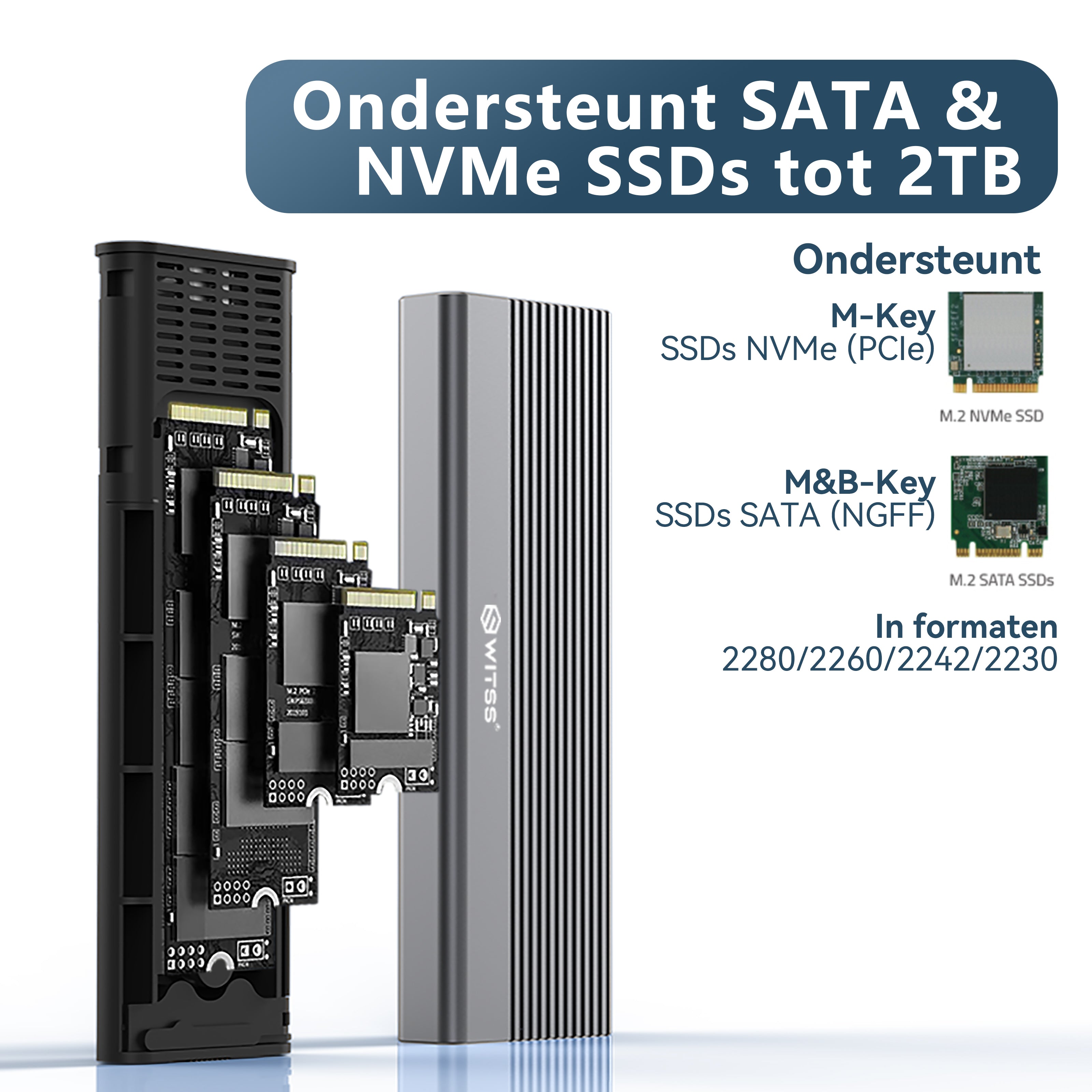

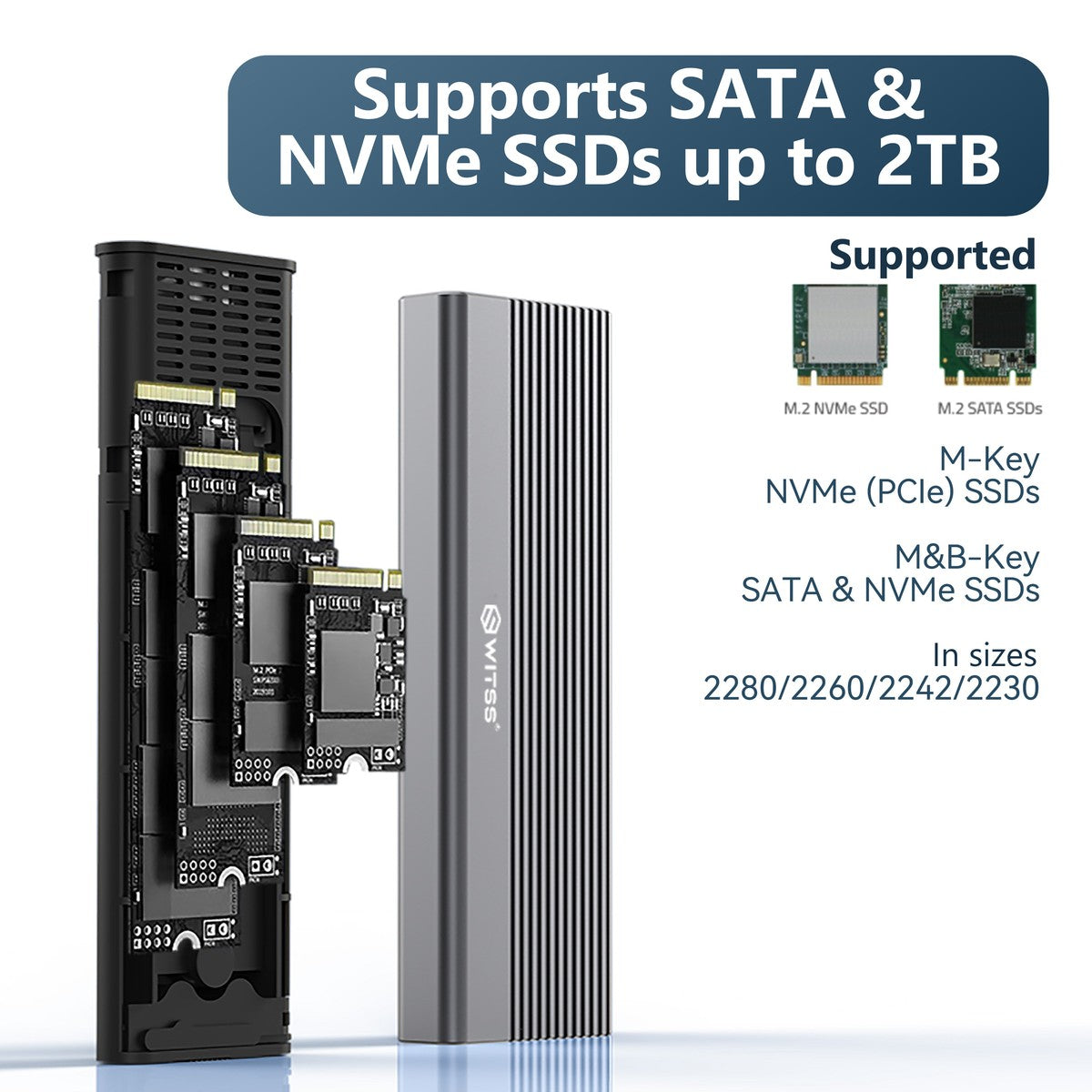

    Fits (almost) every M.2 SSD

    From 2230 to 2280, NVMe and SATA, up to 8 TB

    Four lengths, one tray

    SSD not included
    Top view of the tray with the plug positions for 2230, 2242, 2260 and 2280

    Put the silicone plug in the hole that matches the length of your SSD

    4lengths2230 to 2280
    8TBmaximum capacity
    2typesNVMe and SATA

    Cooling

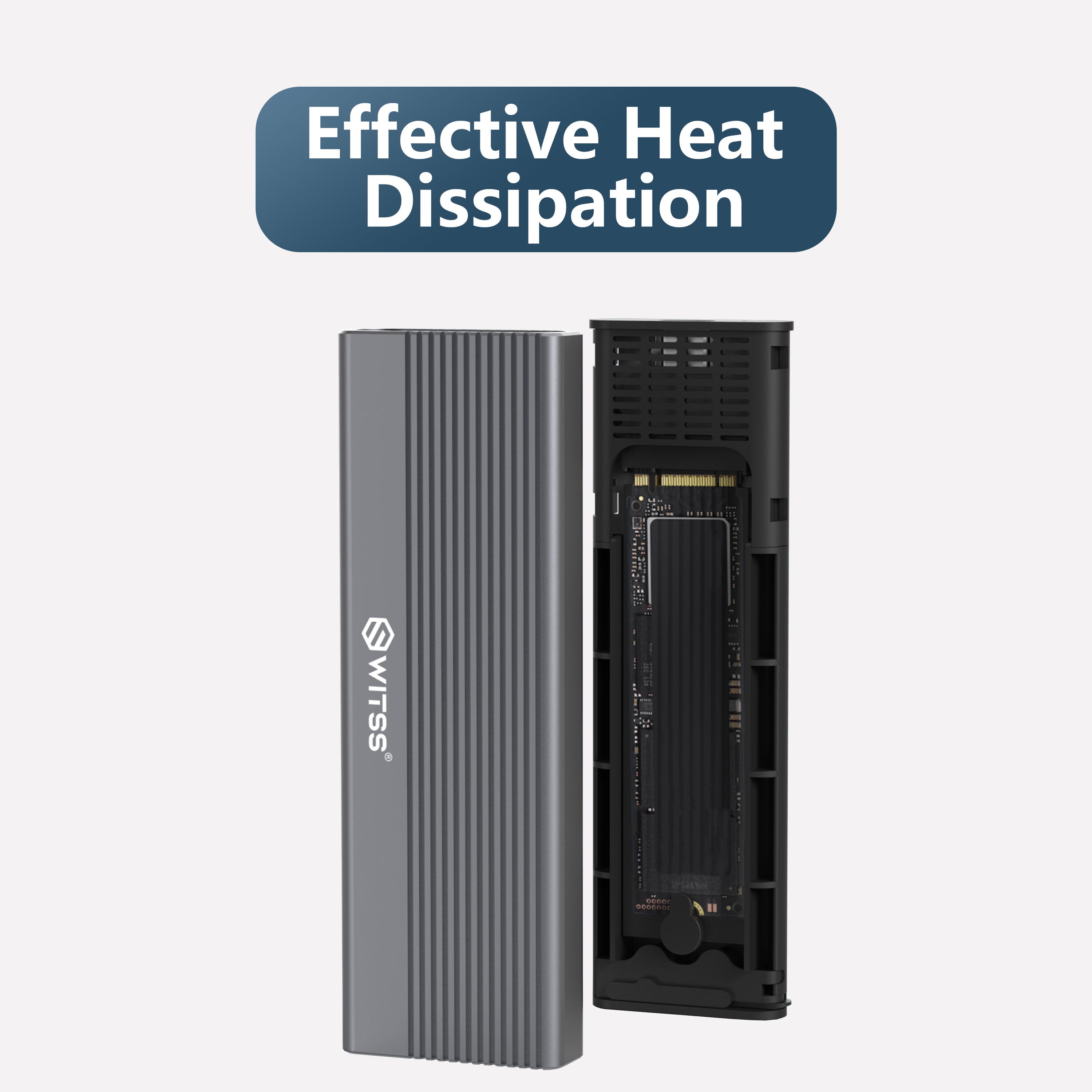

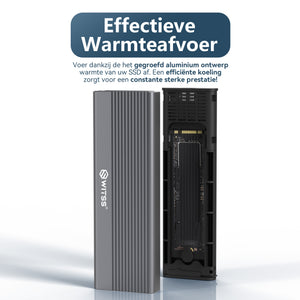

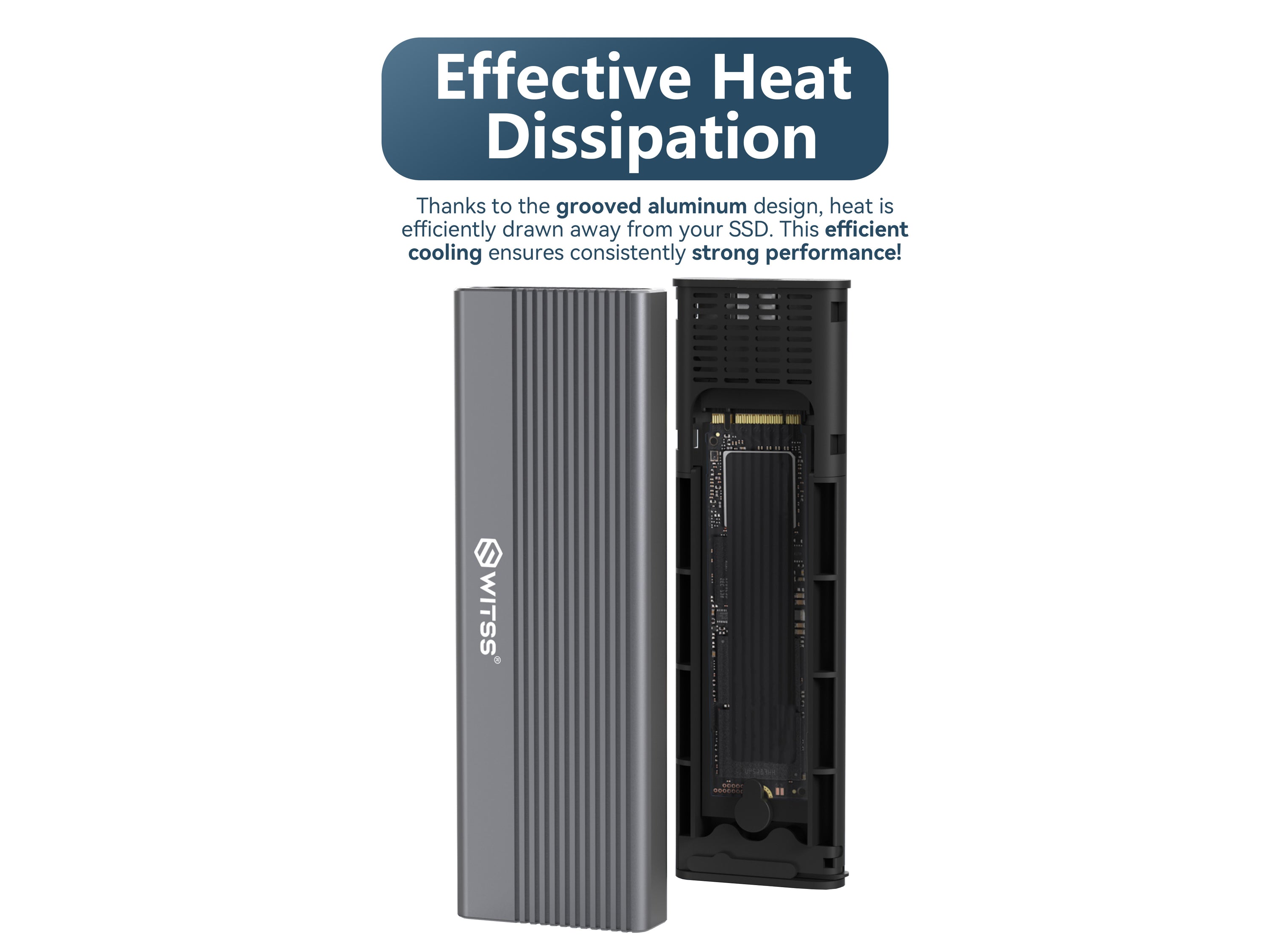

    The enclosure is the heatsink

    The aluminium carries the heat away from your SSD

    How your SSD stays cool

    Cross-section of the enclosure: eleven cooling fins on top, the aluminium wall, the thermal pad and below it the M.2 SSD on the tray. Orange arrows show how the heat travels from the chips through the pad and the aluminium into the air
    1. 11 cooling fins
    2. aluminium enclosure
    3. thermal pad
    4. your M.2 SSD
    11finsalong the full length

    Stays at full speed

    Even on long transfers

    Silent, no fan

    Nothing to break

    Speed

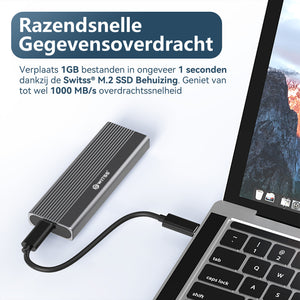

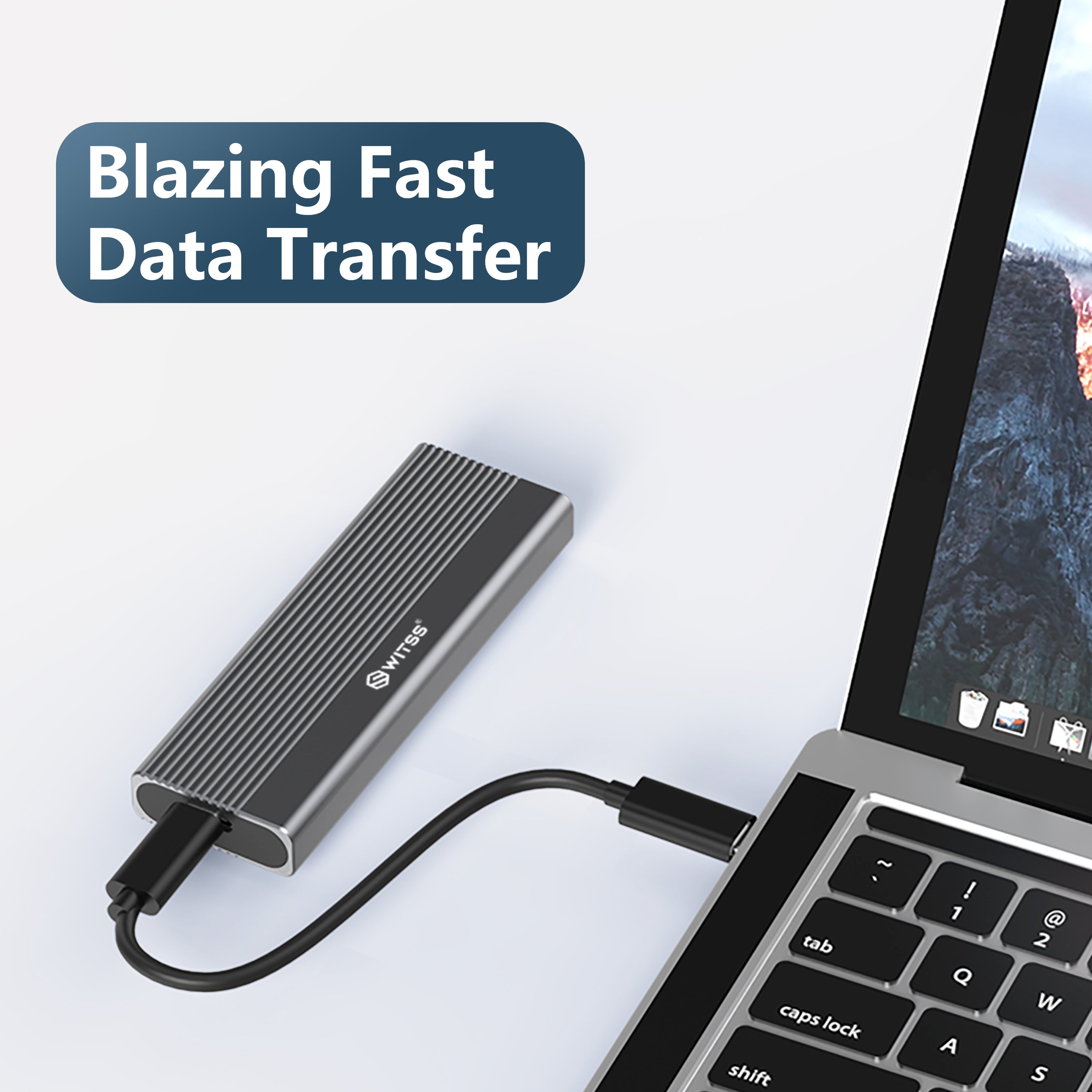

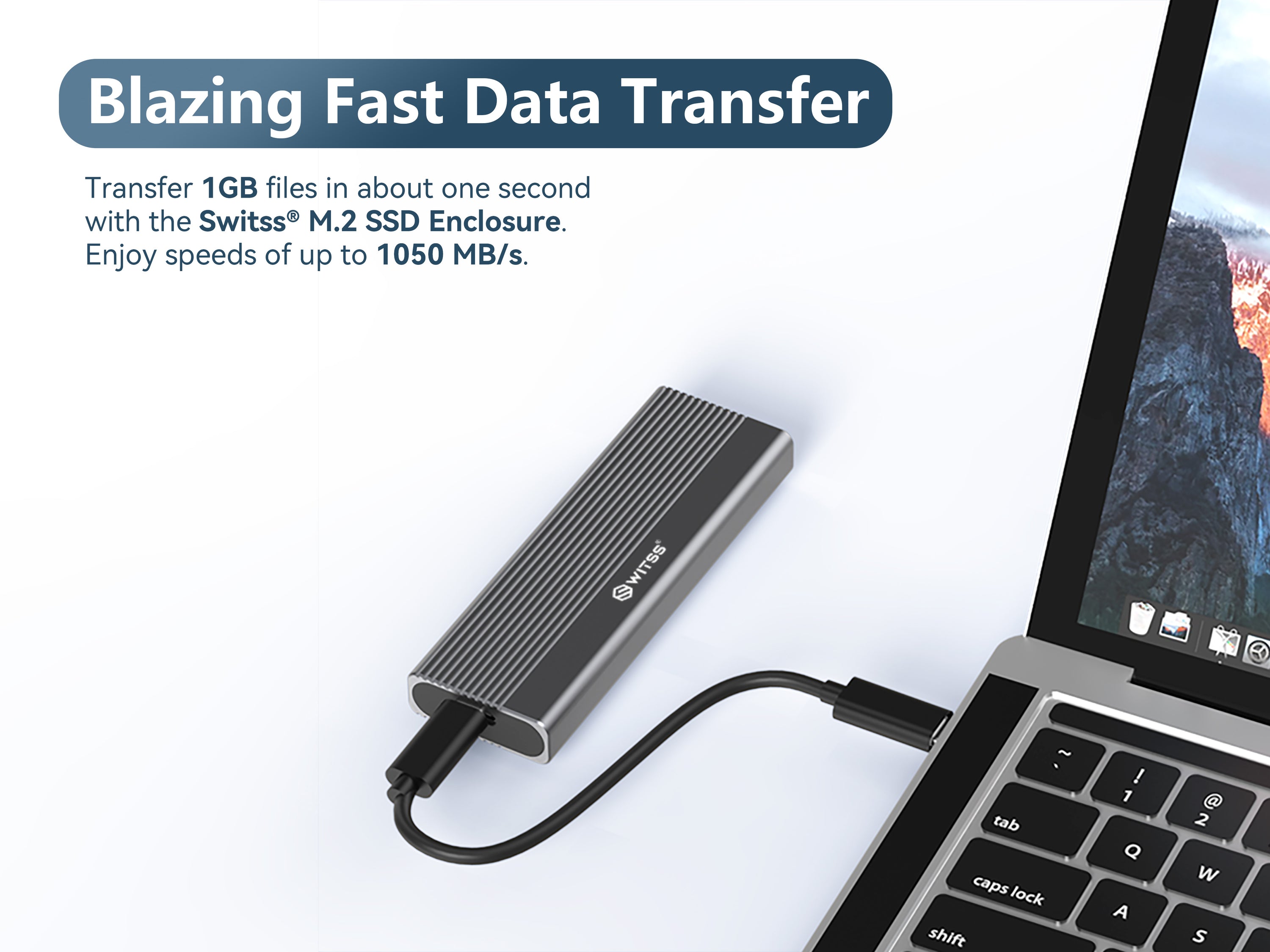

    Transferring photos? Done

    Up to 1050 MB/s with an NVMe SSD

    Switss M.2 SSD enclosure connected to a laptop while editing photos
    1050MB/sread
    1000MB/swrite
    8×fasterthan an external hard drive

    With an NVMe SSD on a USB 3.2 Gen 2 port (10 Gbps)

    Which SSD

    Which M.2 do I have?

    Look at the notch in the gold edge of your SSD

    Connector edge of an M.2 SSD with the chips facing up, the gold edge facing down and the notch marked

    Chips up, gold edge down

    See where the notch is

    • NVMe: usually M-key
    • SATA M.2: usually B+M-key
    • M-key

      one notch on the right

      fits

    • B+M-key

      two notches

      fits

    • B-key

      one notch on the left

      does not fit

    • Does not fit: mSATA, 2.5 inch drives and SSDs longer than 80 mm
    • Not sure? Send us a photo of your SSD and we'll check

    Installation

    Ready in one minute

    No screws, no tools

    1. Unlock, tray out

      Set the lock to open, pull the tray out

      Enclosure with the tray pulled halfway out
    2. SSD into the connector

      Thermal pad on, then push in at an angle

      Tray with an M.2 SSD being pushed into the connector at an angle
    3. Insert plug, turn 45°

      The plug holds the SSD in place

      Close-up of the silicone plug holding the SSD in the tray
    4. Back in at an angle until it clicks

      So the clip snaps in by itself

      Tray with SSD sliding back into the enclosure at an angle

    Devices

    Plug in and go

    Works with your laptop, PC, tablet and phone

    Switss M.2 SSD enclosure standing upright on a desk, with the cable connected to a laptop

    Operating systems

    • Windows
    • macOS
    • Linux
    • Android
    • iPhone 15+
    • USB-C and USB-Aone cable, two plugs
    • No drivers neededplug in and your SSD appears as an external drive
    • Also PS4, PS5 and XboxPS5 and Xbox for media only, not for games

    Port

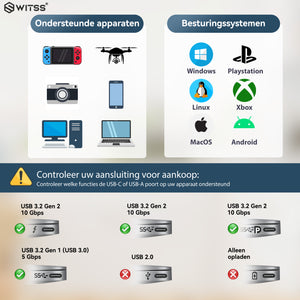

    Check your port

    Speed depends on the port on your laptop or PC

    • USB-C with SS 10 or 10

      USB 3.2 Gen 2 · 10 Gbps

      SS1010

      up to 1050 MB/s

    • USB with SS

      USB 3.0 / 3.2 Gen 1 · 5 Gbps

      SSSS

      about 500 MB/s

    • USB without SS

      USB 2.0 · 480 Mbps

      about 40 MB/s

    • Charge only

      lightning or battery, no SS symbol

      does not work

    First use

    New SSD?
    Here’s how to set it up

    A new SSD only shows up once it is initialised, which takes two minutes

    Windows

    1. Right-click StartChoose Disk Management, or Windows key + X
    2. Right-click UnallocatedChoose New Simple Volume
    3. Choose your file systemClick Finish, see the guide below
    • Unallocated · 1000 GB
    • Switss SSD (D:) · ready

    macOS

    1. Open Disk UtilityLaunchpad, Other folder
    2. Select the Switss disk on the leftClick Erase at the top
    3. Choose your file systemClick Erase, see the guide below
    • Not initialised · 1000 GB
    • Switss SSD · ready

    Which file system should you choose?

    Windows only
    NTFS
    Mac only
    APFS
    Windows and Mac, consoles, TV
    exFAT

    Always eject safely before unplugging the cable

    Dimensions

    Compact and light

    Fits in your pocket, lighter than your phone

    Top view of the M.2 SSD enclosure, 116 mm long and 38 mm wide
    Top view
    Bank card, 86 × 54 mm
    Side view of the enclosure along its full length
    Side view
    Front view of the enclosure, 13 mm thin
    Front view
    116mmlong
    38mmwide
    13mmthin
    71gramslight

    In the box

    What's in the box

    Supplied without an M.2 SSD

    On top: the enclosure in its insert
    Drawing of the open box seen from above: the enclosure sits on top, in its insert
    Under the insert: cable, thermal pad, plugs, manual
    Drawing of the layer under the insert, in the 155 by 65 mm box: cable with USB-A adapter, thermal pad, two silicone plugs and the manual
    PartQty
    1Switss® M.2 enclosure 1×
    2USB-C cable, 30 cmWith USB-A adapter 1×
    3Thermal pad 1×
    4Silicone plugs1 spare 2×
    5ManualNL · EN · FR · DE 1×

    What do you use it for?

    Photo & video

    Work smoothly with 4K footage and large RAW libraries, on the go or at your desk. A 20 GB 4K video is transferred in about 20 seconds.

    Expand your laptop

    Not enough storage? Put your photos, projects and backups on a fast external SSD instead of in the cloud.

    Gamers

    Put your media library on the PS5 or Xbox, or games and media on the PlayStation 4.

    Reuse an old SSD

    Got a spare M.2 SSD after an upgrade? Give it a second life as a fast external drive.

    Specifications

    SpecificationSW-M2-01
    ConnectionUSB-C 3.2 Gen 2 (10 Gbps)
    SSD typeM.2 NVMe (PCIe) + M.2 SATA (NGFF)
    M.2 sizes2230 · 2242 · 2260 · 2280
    Max. capacityUp to 8 TB
    CoolingAluminium enclosure with heatsink and thermal pad
    MountingSilicone plug, no screws
    InstallationNo drivers needed
    Dimensions116 × 38 × 13 mm · 71 g
    Warranty3-year producer guarantee (EU GARAN label)

    Manual & downloads

    Order for business

    5% off from 2 units · 10% off from 10 units applied automatically in your cart

    Invoice with VAT · KvK 76439534 · VAT NL860623646B01

    Frequently asked questions

    What is the difference between NVMe and SATA?

    NVMe (PCIe) is the faster technology and reaches up to 1050 MB/s in this enclosure. SATA (NGFF) is older and reaches up to about 500 MB/s. Both fit in the same Switss® enclosure.

    Which M.2 sizes fit?

    Sizes 2230, 2242, 2260 and 2280, up to 8 TB. The enclosure does not fit 2.5-inch SSDs or hard drives.

    Which devices does the enclosure work with?

    On Windows, macOS and Linux, plug and play, no drivers. You prepare a new or empty SSD once via Disk Management (Windows) or Disk Utility (macOS).

    Does it work on a PlayStation, Xbox or my phone?

    On the PlayStation 4, the enclosure works for both games and media. On the PlayStation 5 and Xbox only for media such as films and music, not for installing games. And yes: also on an iPhone 15 or newer (USB-C) and on Android phones and tablets with USB-C.

    Is an SSD included?

    No. This is an empty enclosure: you fit your own M.2 SSD (NVMe or SATA, 2230 to 2280) and secure it without screws using the silicone plug. No SSD yet? Check “Which SSD fits” above first, so you know you are ordering the right one.

    How much warranty do I get?

    3-year producer guarantee under the EU GARAN label, with direct Dutch customer service. A question? We usually reply within one business day.

    Still not sure? Ask your question and a real person replies within 24 hours.
